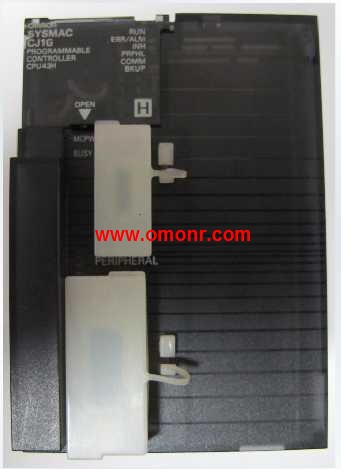

CJ1G-CPU43H Programmable Controllers

OMRON CJ1G-CPU43H Manual And Instructions
CJ1G-CPU43H datasheetPDF datasheet
CJ1G-CPU43H Operation Manual
CJ1G-CPU43H SYSTEM MANUAL
CJ1G-CPU43H Communications CommandsHOST CONNECTION MANUAL
CJ1G-CPU43H HOST CONNECTION MANUAL
CJ1G-CPU43H PROGRAMMING MANUAL
CJ1G-CPU43H INSTRUCTIONS REFERENCE MANUAL
CJ1G-CPU43H Communications CommandsREFERENCE MANUAL
CJ1G-CPU43H INSTRUCTIONS REFERENCE MANUAL

OMRON CJ1G-CPU43H Product information and technical parameters:
Brand: OMRON
Name: Programmable Controllers
Model: CJ1G-CPU43H
I/O capacity/Mountable Units(Expansion Racks): 960 points/30 Units (2 Expansion Racks max.).
CJ1G-CPU43H Program capacity: 20K steps.
Data memory capacity: 64K words(DM: 32K words, EM: 32K words × 1 bank).
LD instruction

Unit type: CJ1 Basic I/O Units.
Product name: DC Input Units.
Specifications: I/O points, 32 inputs;
Input voltage and current: 24 VDC, 4.1 mA;
Commons, 16 points, 1 common; External connection,
Fujitsu connector; No. of words allocated, 2 word.
Current consumption: 5V, 0.09A; 24V, --.
Standards: UC1, N, L, CE CJ1G-CPU43H.
A Wide Range of Basic Input,
Units for High Speed Input and,
Different Applications CJ1G-CPU43H
Receive ON/OFF signals from external,
devices into the PLC System to update,
I/O memory in the CPU Unit.
New high-speed input models CJ1W-ID212 and,
CJ1W-ID233 are now available. These units can,
help to increase system throughput. Unit type: CJ1 CPU Bus Unit.
Product Name: FL-net Unit CJ1G-CPU43H.
Specifications:Communications interface,
100Base-TX; Communications functions,
With FL-net Ver. 2.0 specifications,
(OPCN-2) Data links and message service,
Max. Units mountable per CPU Units, 4.
No. of unit numbers allocated: 1.
Current consumption : 5V, 0.37A; 24V,--.
Standards: UC1, CE.
Connect to Multivendor Controller Networks.
This Unit allows you to connect to FL-net,
an open network based on Ethernet CJ1G-CPU43H.
Multivendor FL-net networks can be built,
to combine CJ series PLCs with CNC machines,
robots, and PLCs from other manufacturers. Unit type: CJ1 CPU Bus Units.
Product Name: Position Control,
Units with EtherCAT interface.
Specifications: Control output interface,
Control commands executed by,
EtherCAT communications.
Positioning functions: Memory operation,
Direct operation by ladder programming;
No. of axes: 4 axes.
No. of unit numbers allocated: 1.
Current consumption : 5V, 0.46A; 24V,--.
Standards: UC1, CE.
Preeminent control performance and,
easy operation feature of EtherCAT,
improve the production efficiency.
The EtherCAT communications with,
100Mbps baud rate enables fast,
and accurate position control.
A wide range of position control,
functions are available with,
this position control unit.
Unit type: CJ1 Basic I/O Units.
Product name: Transistor Output Units.
Specifications: Output type, Sourcing;
I/O points, 8 outputs;
Maximum switching capacity, 24VDC,
0.5A Short-circuit protection;
Commons, 8 points, 1 common;
External connection, Removable terminal block.
No. of words allocated: 1 word.
Currentt consumption: 5V, 0 CJ1G-CPU43H. 10A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Output,
Units for High Speed Output,
and Different Applications.
These Output Units receive the ,
results of output instructions ,
from the CPU Unit and perform ON/OFF,
control for external devices CJ1G-CPU43H.
High-speed Output models CJ1W-OD213 and,
CJ1W-OD234 can help to increase system.
throughput.
