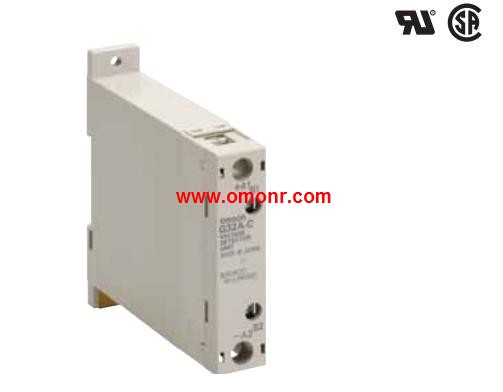

G32A-C Series Voltage Detection Unit

OMRON G32A-C Series Manual And Instructions
G32A-C Series datasheetPDF datasheet

OMRON G32A-C Series Product information and technical parameters:
Brand: OMRON
Name: Voltage Detection Unit
Model: G32A-C Series
Refer to Safety Precautions for All Solid State Relays.
Prevents G3PA Malfunction.
Connects to a maximum of two G3PA-VD Relays.
Prevents malfunction of the G3PA-VD due to residual voltage,
leakage current, or input noise.

Insulation method: Phototriac.
Operation Display: Yes(green).
Output(SSR): AC.
Zero cross Function: NO.
Rated output Load: 2 A(at 100 to 240 VAC).
Rated input voltage (socket): 48 VAC/VDC, 100 VAC, 110 VAC, 200 VAC, 230 VAC.
Applicable model: G3RV-SR700/500-A AC/DC48V,G3RV-SR700/500-A AC100V,
G3RV-SR700/500-A AC110V, G3RV-SR700/500-A AC200V, G3RV-SR700/500-A AC230V G32A-C Series.
Global standard size,
low profile slim I/O relay with width 6 G32A-C Series2 mm,
slim I/O solid state relay.
Realized about 25% lower profile than conventional,
products, contributing to further miniaturization of the,
control panel.
Push-In Plus terminal blocks are used to save wiring work,
in comparison with conventional screw terminals G32A-C Series.
(Wiring time is reduced by 60%* in comparison with,
traditional screw terminals.).
No screw loosening means maintenance-free application,
realizing high reliability.
Hand-free structure that holds an inserted flat-blade,
screwdriver to achieve easier wiring work for stranded wires.
Screw terminal is also stocked to meet the screw type needs.
Mounted relay or solid-state relay has a plug-in terminal G32A-C Series.
that is difficult to bend at the time of exchange. Terminal (Wire connection): Screw terminal.
Classification: Standard.
Latching lever (Test switch): Yes.
Rated input voltage: AC/DC, 24V.
Global standard size, low profile slim.
I/O relay with width 6.2 mm.
Realized about 25% lower profile than conventional.
products, contributing to further miniaturization of the control panel.
Realized opening and closing ability with one pole 6 A slim shape.
Micro load products for one pole 50 mmA using Au-plated G32A-C Series.
contacts for small load switching also available.
Since G2RV is a transparent case, confirming the state of,
the contact with the naked eye is possible, and easy to,
confirm abnormality on-site (installed locatiion) G32A-C Series.
Screw terminal is also stocked to meet the screw type needs.
Mounted relay uses plug-in terminals that are difficult to,
bend when exchanging.
